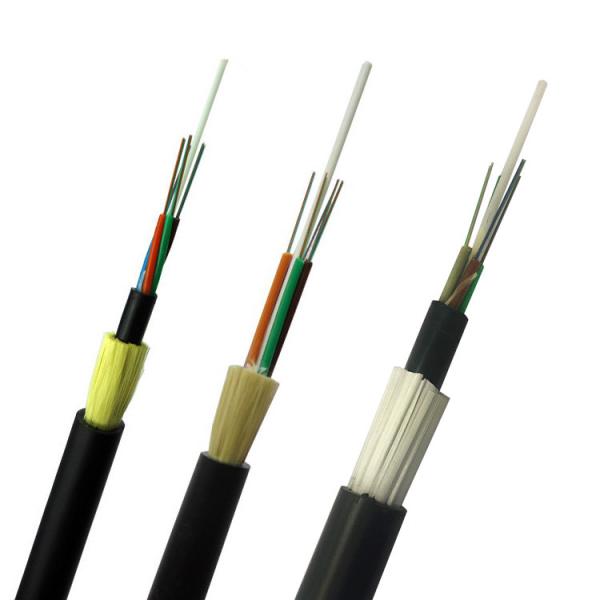

Aerial 48 Core Fiber Optic Cable , ADSS Optical Cable Outdoor Aramid Strength

Name: Aerial 48 Core Fiber Optic Cable ADSS Optical Cable Outdoor Aramid Strength
Brand: ODM/OEM
Price: 0.20 USD

China Aerial 48 Core Fiber Optic Cable , ADSS Optical Cable Outdoor Aramid Strength factory

Model Number : ADSS

Place of Origin : China

Packaging Details : wooden drum or on request

Supply Ability : 1000 Kilometer/Kilometers per Week

MOQ : 2000 meters

Price : $0.20 - $0.70/meters

Brand Name : ODM/OEM

Certification : RoHS, CE

Payment Terms : T/T, Western Union

Type : Fiber Optic Cable

Product name : ADSS Fiber Optic Cable

Feature : water-resistant

fiber count : 2~288 core

Jacket material : PE or AT

Jacket : double

Fiber Type : G652D

water blocking material : aramid yarn

loose tube material : PBT

Span length : 100m/150m

Multi-Mode Fiber : Not Applicable

Contact Now

ADSS Cable manufacturer outdoor aramid strength aerial 48 core fiber optic cable

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.

Aerial 48 Core Fiber Optic Cable , ADSS Optical Cable Outdoor Aramid Strength

Loose tube stranded ADSS

1.Can be installed without shutting off the power
2.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back props
3.Large span lengths
4.Good performance of tensile strength and temperature
5.The design life span is 30 years
6.Package : 2~4km/ wooden drum

MORE PICTURES

Technical Data

Fiber Type	Fiber attenuation(+20℃)				Band Width		Numerical aperture	Cut-off wavelength of optic fiber cable
Fiber Type	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Numerical aperture	Cut-off wavelength of optic fiber cable
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---

Application:

Frequent lightning area and anti electric field : The subway, tunnel
Long-distance communication: Local trunk network & User network
Duct and direct buried application
Harsh environm
