24 Core Single Mode Optical Cable With LSZH FRNC Sheath Material

Name: 24 Core Single Mode Optical Cable With LSZH FRNC Sheath Material
Brand: ODM/OEM
Price: 0.20 USD

China 24 Core Single Mode Optical Cable With LSZH FRNC Sheath Material factory

Model Number : GYFSH

Place of Origin : China

Brand Name : ODM/OEM

Certification : ISO9001

Packaging Details : 2KM/Wooden Drum

Supply Ability : 1000000 Meter/Meters per Week

MOQ : 2000 meters

Price : $0.20 - $0.68/meters

Payment Terms : T/T, Western Union

Type : Outdoor Fiber Optic Cable

Number of Conductors : ≥ 10

Fiber Type : G652D/G657A1/G657A2

Fiber count : 2-24 Cores

loose tube color : at your request

Additional strength : Aramid yarn

Outer sheath material : LSZH/FRNC

Application : Telecommunication

Packing : 2-4km/wooden drum

Color : Black

Contact Now

High Quality 2-24 core single mode fiber optic cable light lszh cable GYFSH

PERFORMANCE

1.Can be installed without shutting off the power
2.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
3.Good performance of tensile strength and temperature
4.The cable life is 30 years
5.Package : 2~4km/ wooden drum or as customer request

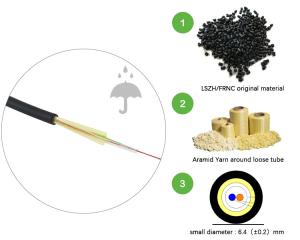

24 Core Single Mode Optical Cable With LSZH FRNC Sheath Material

TECHNICAL DATA

No. of cable					24
Fiber Model					G.652D
Material			PBT
Diameter(±0.03)mm			0.35
Thickness(±0.06)mm			3.0
Material			LSZH
Thickness(±0.1)mm			1.3
Cable Diameter(±0.2)mm					6.4
Cable Weight(±5)kg/km					49
Min. bending radius	Without Tension			15.0×Cable-φ
Min. bending radius		Under Maximum Tension			20.0×Cable-φ
Temperature range (℃)	Installation			-5~+50
		Transport&Storage			-30~+70
		Operation			-20~+70

We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.

We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.


We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.

We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Packaging detail: 2km / export wooden drum (your request is available )

Remark:Usually we only attach the test report on the packaging, but your request is available too. For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Note:
1. Storage/Operating Temperature:-40℃ to +70℃.
2. The minimum value of the PE sheath thickness is 1.6mm.
3. The cable should not store in outdoor environment more than 6 months in order to keep the cable reel good st

This data sheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more
detailed information.

FAQ & Contact

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
