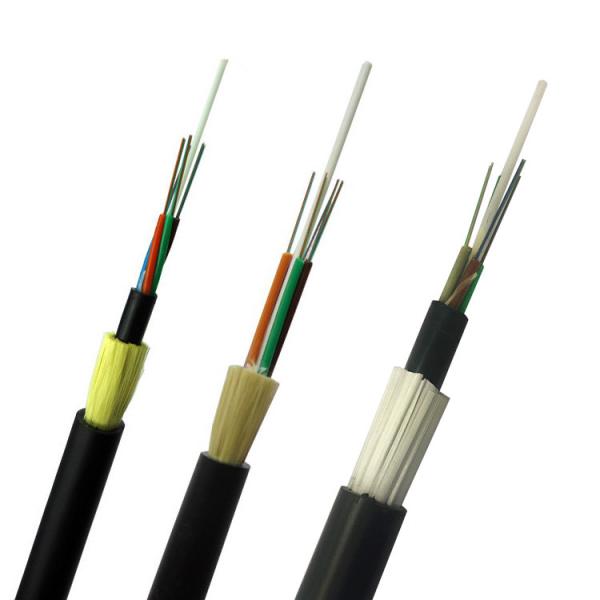

100m Span Fiber Optic ADSS Cable 48 Core Aerial With Double Jacket

Name: 100m Span Fiber Optic ADSS Cable 48 Core Aerial With Double Jacket
Brand: ODM/OEM
Price: 0.50 USD

China 100m Span Fiber Optic ADSS Cable 48 Core Aerial With Double Jacket factory

Model Number : ADSS

Place of Origin : China

Brand Name : ODM/OEM

Certification : ISO9001

Packaging Details : 2-4 km/ wooden drum

Supply Ability : 100 Kilometer/Kilometers per Week

MOQ : 2000 meters

Price : $0.50 - $0.99/meters

Payment Terms : T/T, Western Union

Type : Outdoor Fiber Optic Cable

Number of Conductors : ≥ 10

Item : 100m span ADSS 48 core aerial fiber optic cable with double jacket

Fiber Type : G652D single mode or as your request

Number of Cores : 48 core or as your request

Central Strength Components : FRP

Loose Tube : Jelly Filled

Cable Diameter(mm) : 12

Outer Sheath : PE

Outer Sheath Color : Black

Operation Temperature : -40+70

Color : Black

Contact Now

Factory price outdoor single mode all dielectric 100m span ADSS 48 core aerial fiber optic cable with double jacket

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.

The tubes are filled with a water-resistant filling compound.

The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath.

After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

100m Span Fiber Optic ADSS Cable 48 Core Aerial With Double Jacket

Specification

No. of cable						48
Fiber Model						G652D
Central Strength Member	Material				FRP
Central Strength Member		Diameter(±0.05)mm				1.5
Loose Tube	Material				PBT
		Diameter(±0.06)mm				1.8
		Thickness(±0.03)mm				0.32
		The Max.Core NO./Tube				12
Filler rope	Material				LDPE
Filler rope		Diameter(±0.06)mm				1.8
Water Blocking Layer						Flooding Compound
Additional Strength Member						Aramid Yarn
Inner Sheath	Material				PE
Inner Sheath		Thickness(±0.1)mm				0.9
Outer Sheath	Material				PE
Outer Sheath		Thickness(±0.1)mm				1.7
Cable Diameter(±0.2)mm						12
Cable Weight(±5)kg/km						108
Cable breaking strength(RTS)						5.8Kn
Working Tension (MAT)						2.2Kn
Wind velocity						30m/s
Icing						5mm
Span						100m
Crush Resistance				Short Term	2200(N/100mm)
				Long Term	1100(N/100mm)
Min. bending radius			Without Tension		10.0×Cable-φ
			Under Maximum Tension		20.0×Cable-φ
Temperature range (℃)			Installation		-20~+60
			Transport&Storage		-40~+70
			Operation		-40~+70

Application

Application note

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.

For overhead power lines under 110kV, PE outer sheath is applied.

For power lines equal to or over 110kV. AT outer sheath is applied.

The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Related Products

Packaging detail: 2km / export wooden drum (your request is available )

Remark:Usually we only attach the test report on the packaging, but your request is available too. For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Note:
1. Storage/Operating Temperature:-40℃ to +70℃.
2. The minimum value of the PE sheath thickness is 1.6mm.
3. The cable should not store in outdoor environment more than 6 months in order to keep the cable reel good st

This data sheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more
detailed information.
