High Quality Under GR 24 48 96 144 Cores G652d Fibre Optique Cable GYFTY53

Model Number : GYFTY53

Place of Origin : shenzhen

Brand Name : ODM/OEM

Packaging Details : 2KM/Wood Spool

Supply Ability : 10000 Kilometer/Kilometers per Week

MOQ : 1000 meters

Price : $0.15 - $0.58/meters

Certification : CE RoHS FCC ISO9001, RoHS, CE

Payment Terms : T/T, Western Union

Type : Fiber Optic Cable

Use : FTTP

Multi-Mode Fiber : OM1/OM2/OM3

Single-Mode Fiber : G655,G652D, G657A1, G657A2

No. of Fiber : 2 to 144

Fiber Count : 2 to 144 Fiber

Fiber Type : G655,G652D, G657A1, G657A2

Application : aerial, duct

Number of Conductors : ≥ 10

Fiber Brand : Corning, OFS, YOFC

Jacket Material : PE PVC LSZH

Sample : 12 core fiber optic cable ADSS sample is available

Product name : Outdoor fiber optic cable

Packing : 2KM/Drum

Storage Temperature(℃) : -40~+70

Contact Now

Products Description

High Quality Under GR 24 48 96 144 Cores G652d Fibre Optique Cable Gyfty53
High Quality Under GR 24 48 96 144 Cores G652d Fibre Optique Cable GYFTY53

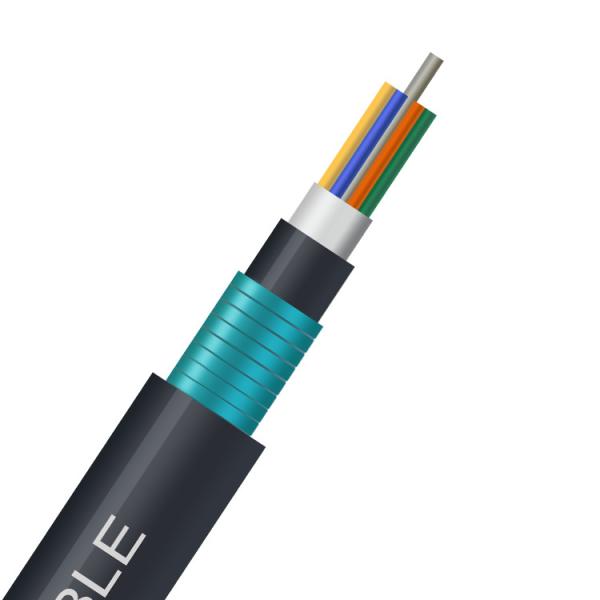

GYFTY53 fiber optic cable is Stranded Loose Tube Non-metallic Strength Member Water-blocking Armored Cabledesigned for direct-buried installation, can be buried directly into the ground in a trenchor using a vibratory plow,suitable for frequent
lightning area and anti electric field.
High Quality Under GR 24 48 96 144 Cores G652d Fibre Optique Cable GYFTY53

48 core anti-tracking optical fiber We are 11 years fiber optic cable manufacturer. Welcome to go to the factory tour! Send message to us can get free samples.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Features

Double sheath
Good moisture-resistance
Good ultra violet radiation resistant property
Steel Wire strength, filler protect tube fiber, steel tape armord

Applications

Adopted to outdoor distribution
Suitable for aerial, pipeling laying method
Long distance and local area network communication

Technical parameters

No. of cable
12
24
48
Fiber Model
G.652D
Design
(StrengthMember+Tube&Filler)
1+5
Central Strength Member
Material
Steel Wire
Diameter(±0.5)mm
1.4
Loose Tube
Material
PBT
Diameter(±0.06)mm
1.72
1.72
2.0
Thickness(±0.03)mm
0.30
0.30
0.32
The Max.Core NO./Tube
6
6
12
Filler Rope
Material
LDPE
Diameter(±0.06)mm
1.7
1.7
2.0
NO.
3
1
1
Moisture Barrier
Material
Polymer Coated Aluminum Tape
Thickness(±0.03)mm
0.20
Inner
Sheath
Material
MDPE
Thickness(±0.2)mm
0.9
Armoring
Material
Polymer Coated Steel Tape
Thickness(±0.2)mm
0.22
Water Bloaking Layer
Material
Filling Compound
Outer Sheath
Material
MDPE
Thickness(±0.2)mm
1.8
Cable Diameter(±0.5)mm
12.5
12.5
13.1
Cable Weight(±10)kg/km
152
167
167
Attenuation
1310nm
0.35dB/ km
1550nm
0.21dB/ km
Min. bending radius
Without Tension
12.5×Cable-φ
Under Maximum Tension
25.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

Outdoor fiber optic cable with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles.

They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements.

we manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.

APPLICATION

Long-distance communication,LAN

Moisture-proof and rodent-proof

Duct, Aerial

FEATURES

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Specially designed compact structure is good at preventing loose tubes from shrinking

PE sheath protects cables form ultraviolet radiation

The following measure are taken to ensure the cable watertight

Steel wire used as the central strength member

Loose tube filling compound

100% Cable core filling

Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world,Looking forward to cooperate with you.

High Quality Under GR 24 48 96 144 Cores G652d Fibre Optique Cable GYFTY53

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Packing & Delivery

Sample

Within 1-2 working days

Wholesale orders

3-7 working days according various quantities

High Quality Under GR 24 48 96 144 Cores G652d Fibre Optique Cable GYFTY53
High Quality Under GR 24 48 96 144 Cores G652d Fibre Optique Cable GYFTY53
FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. What's our main products?
Answer: We dedicate to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

3. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

4. What certificate we have?
Answer: ISO 9001: 2008, RoSH, CE, High and New Tech Enterprise Certficate.
