Model Number : GYTS
Place of Origin : China
Brand Name : ODM/OEM
Certification : RoHS, CE
Packaging Details : 2KM/Wood Spool
Supply Ability : 1000 Kilometer/Kilometers per Week
MOQ : 2000 meters
Price : $0.10 - $0.50/meters
Payment Terms : T/T, Western Union
Type : Outdoor Fiber Optic Cable, GYTS
Number of Conductors : ≥ 10, ≥ 10, 24
Cable Structure : Multi-Loose Tube CST armor fiber optic cable
Fiber Optical Cable Core Number : 2-288 cores
Fiber Optical Cable Application : Aerial or Duct Applications
Cable type : SM or MM
Fiber options : ITU G652D ,G657A,OM1,OM2,OM3,OM4
Material of jacket : MDPE/HDPE
fiber optic cable tube : Central loose tube
Lead time : 10 days
Outdoor fiber optic cable with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles.
They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements.
we manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.
GYTS 46 core multi mode fiber optic cable corrugated duct type
Long-distance communication,LAN
Moisture-proof and rodent-proof
Duct, Aerial
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Specially designed compact structure is good at preventing loose tubes from shrinking
PE sheath protects cables form ultraviolet radiation
The following measure are taken to ensure the cable watertight
Steel wire used as the central strength member
Loose tube filling compound
100% Cable core filling
| Cable type | OD(mm) | NominalWeight(kg/km) | tensile strength(N) | | Crush Resistance(N/100MM) | | Bending Radius(mm) | | |||||||
| | | | Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||||||
| GYTS-2~60Xn | 10.5±0.5 | 88.0 | 1500 | 600 | 1000 | 300 | 20D | 15D | |||||||
| GYTS-62~72Xn | 11.5±0.5 | 102.0 | 1500 | 600 | 1000 | 300 | 20D | 15D | |||||||
| GYTS-74~96Xn | 13.0±0.5 | 130.0 | 1500 | 600 | 1000 | 300 | 20D | 15D | |||||||
| GYTS-98~144Xn | 15.5±0.5 | 156.0 | 1500 | 600 | 1000 | 300 | 20D | 15D | |||||||
| Storage/Working temperature(℃) | | | -40~+70 | | | | | | |||||||
|

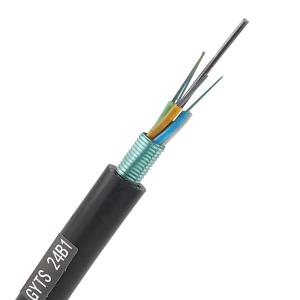

12~288 Cores Armoured Optical Fibre Cable Outdoor Fiber Optic GYTS Cable Images |
