3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125

Name: 3mm Fiber Cable Patch Cord SC UPC SC APC Simplex Single Mode 9125
Brand: ODM/OEM
Price: 0.78 USD

China 3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 factory

Model Number : FC/UPC

Place of Origin : China

Brand Name : ODM/OEM

Certification : ROHS; ISO

Packaging Details : Individual box or according to customer's request

Supply Ability : 20000 Piece/Pieces per Day

MOQ : 100 pieces

Price : $0.78 - $1.50/pieces

Payment Terms : T/T, Western Union

Type : Fiber Optic Cable

Use : FTTH

Fiber type : Singlemode 9/125

Inserion Loss : <0.25db

Return Loss : >50db

Fiber Brand : Corning, YOFC, OFS ...

Connector type : SC,LC,FC,ST

Jacket color : Yellow

Jacket material : LSZH,PVC,OFRN,ORNP

Cable diameter : 1.2mm,1.6mm,2.0mm,3.0mm

Length : Customized

Multi-Mode Fiber : OM1,OM2,OM3,OM4

Single-Mode Fiber : G652D,G657A1,657A2,G655

No. of Fiber : 1.

Contact Now

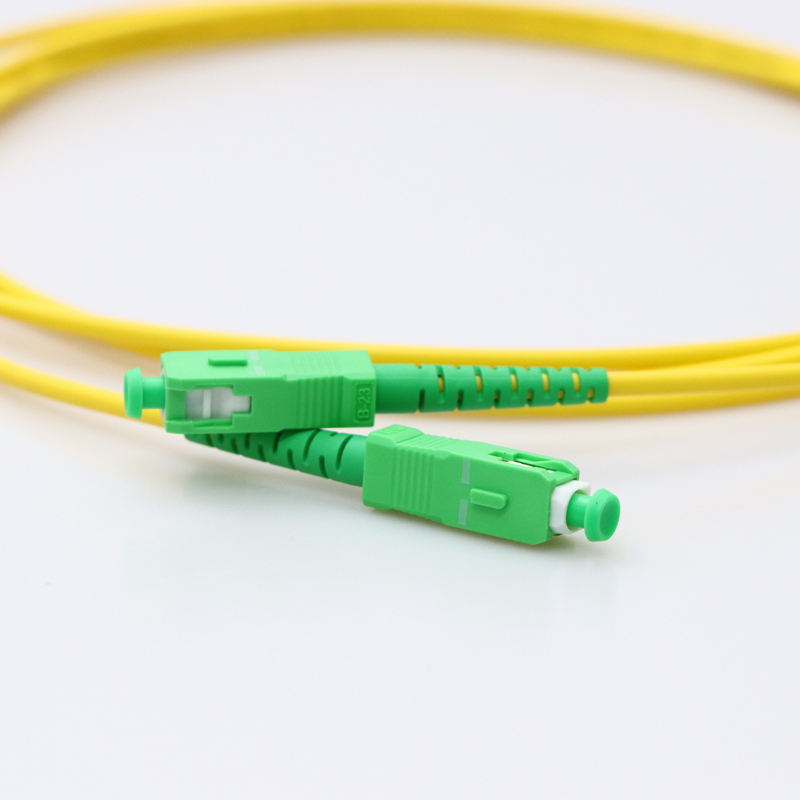

3.0mm SC UPC-SC APC Simplex Single mode 9/125 Optical Fiber Patch cord Fiber Jumper fiber SC patch cord

3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125

Fiber optic patch cord is available in both singlemode and multimode versions. Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability

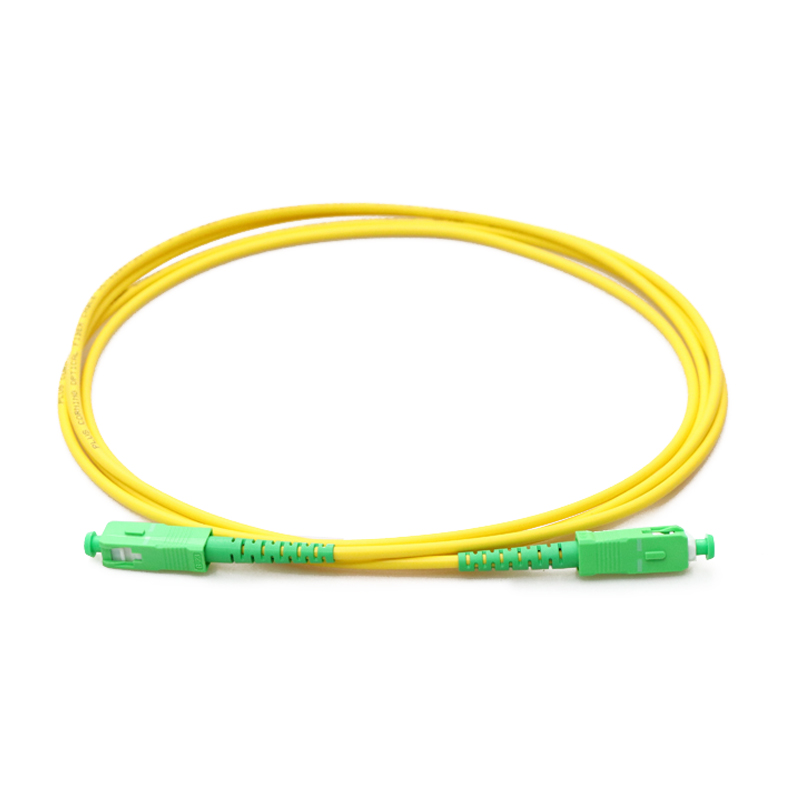

3.0mm SC UPC SC APC Simplex Single mode 9/125 Optical Fiber Patch cord Fiber Jumper fiber SC patch cord

APPLICATION

1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical

FEATURES

1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard

Mode	Single mode			Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.30dB	≤0.20dB	≤0.20dB
Return Loss	≥50dB	≥60dB	≥30dB
Test Wavelength	1310/1550nm			850/1310nm
Durability(500 Matings)	≤0.2dB
Operating Temperature	-40℃~+60℃
Storage Temperature	-45℃~+85℃
Fire Resistant	IEC 60794-2-30
Standards-Compliant	ROHS,IEC and GR-326

Fiber type	Single mode:	(1)9/125-G652D	(2)9/125-G655	(3)9/125-G657A,G657A2	(4)9/125-G657B3
Fiber type		Multimode:	(5)50/125-OM2	(6)62.5/125-OM1	(7)50/125-OM3	(8)50/125-OM4	(9)50/125-OM5
Fiber Brand	YOFC, Corning, Sumitomo, Fujikura
Connector	SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type	Simplex ,Duplex
Cable diameter	0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket	PVC, OFNR, LSZH, OFNP
length(M)	0.5m,1m,2m,5m,10m,25m,50m,100m…Customized

Main Products

Fiber Optic Cable

Patch Cord&Pigtail

MPO/MTP

FTTX Cable Assembly

PLC Splitter

Fast Connector

Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Packing & Delivery

Sample

Within 1-2 working days

Wholesale orders

3-7 working days according various quantities

FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. What's our main products?
Answer: We dedicate to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

3. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

4. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
