Sc Upc Sc APC Fiber Optic Jumper Cable , Drop Cable 1 Core G657b3 With Pulling Eye

Product Categories

Fiber Cable Assembly [26]
Fiber Cable Patch Cord [33]
Fiber Optic Cable [87]
Fiber Optic Splitter [36]
Fiber Optic Loopback [6]
FTTH Solution [28]
Fiber Optic Connector [31]
Fiber Optic Adapter [24]
Fiber Optic Attenuator [9]
MPO Patch Panel [8]
Fiber Optic Terminal Box [19]
Fiber Optic Splice Closure [7]
Fiber Optic Media Converter [6]
WDM Wavelength Division Multiplexing [11]
Ethernet Patch Cable [6]
Fiber Cable Accessories [21]
Fiber Test Equipment [14]

A Fiber Solution Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Sc Upc Sc APC Fiber Optic Jumper Cable , Drop Cable 1 Core G657b3 With Pulling Eye

Model Number : SC

Place of Origin : China

Brand Name : OEM

Packaging Details : Individual box or according to customer's request

Supply Ability : 50000 Set/Sets per Day

MOQ : 2 pieces

Price : $0.50 - $5.20/pieces

Payment Terms : T/T, Western Union

Type : Fiber Optic Cable

Number of Conductors : 1

Fiber Type : G657A,G652D,single mode /multi mode

Cable Length : 20m.30m,50m or customized

Fiber count : 1-12 cores

Application : indoor /outdoor used

Cable type : FTTH FLAT DROP CABLE

Jacket color : Black,white

Outer Jacket : PVC, LSZH,OFNP,PE

Strength member : FRP Strength member

OM Type : 9/125UM,50/125UM,62.5/125UM9/125UM,50/125UM,62.5/125UM

Certifaction : ISO9001, ROHS

Contact Now

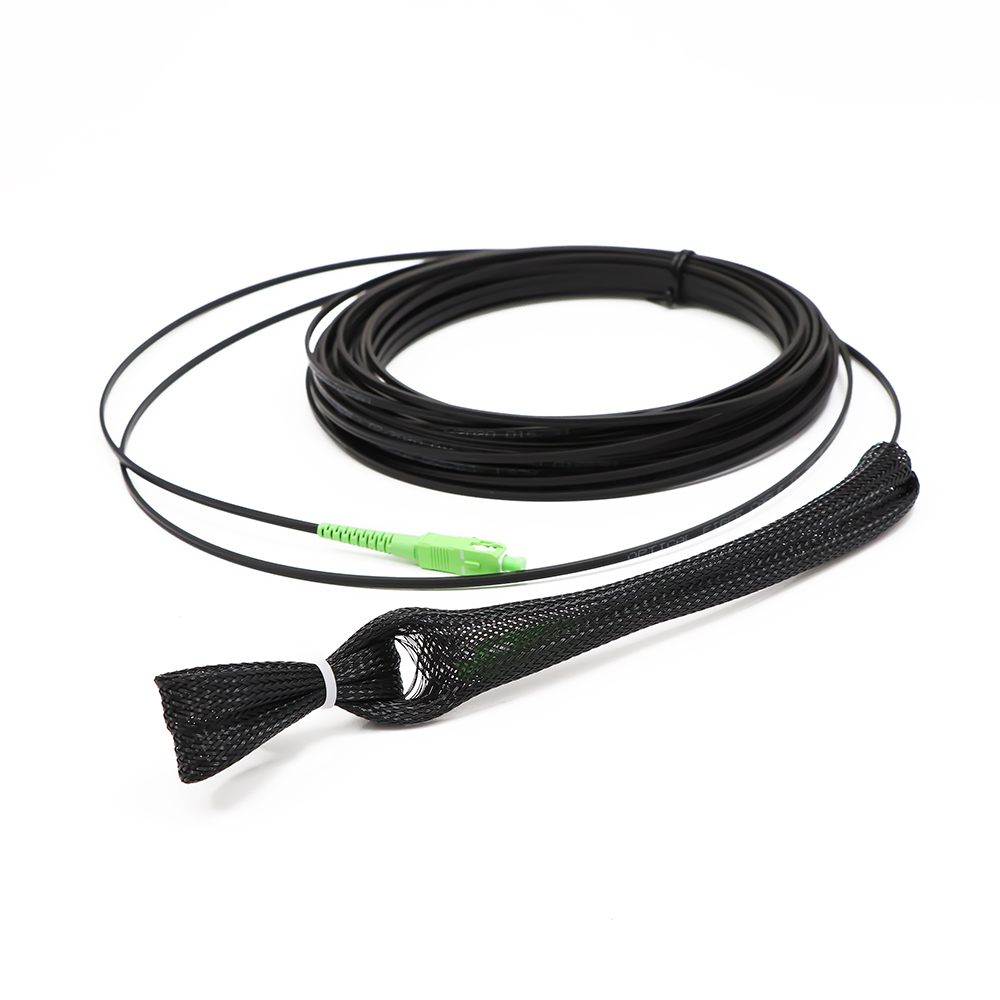

Sc/Upc Sc/APC Jumper FTTH Outdoor Drop Cable 1core G657b3 Fiber Optical Cable Patch Cord One End with Pulling Eye

(1) FTTH drop cable patch cord is specially for FTTH application, it can be used indoor or outdoor to access building.
(2) FTTH drop cable patch cord is used to connect to the end users' homes, widely applied in access networks and FTTH indoor cabling.
(3) FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12.
(4) FTTH drop cable patch cord can be made with LC, SC, FC, ST, LC/APC, SC/APC, FC/APC and other types of connectors.

FEATURES

1.Price-Competitive
2.Low Insertion Loss & PDL
3.Factory-terminated and Tested
4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber
5.Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
6.Polishing Options: PC/UPC/APC
7.Feature Connector with Ceramic Ferrules

APPLICATION

1.Access Network
2.Telecom/CATV Systems
3.FTTx

FTTH drop cable fiber optic patch cord Performance Parameter

Name

FTTH drop cable fiber optic patch cord

Ferrule type

zirconia ceramics ferrule

≤0.3dB

≥55dB

Fiber core

1,2,4 to 12

Durability

≥1000 times

Jacket

3.1*2.0 or 5.0*2.0mm PVC or LSZH

Wavelength

1310 1550nm

Length

1~1000 meter

Working temperature

-40℃~+80℃

Sc Upc Sc APC Fiber Optic Jumper Cable , Drop Cable 1 Core G657b3 With Pulling Eye
