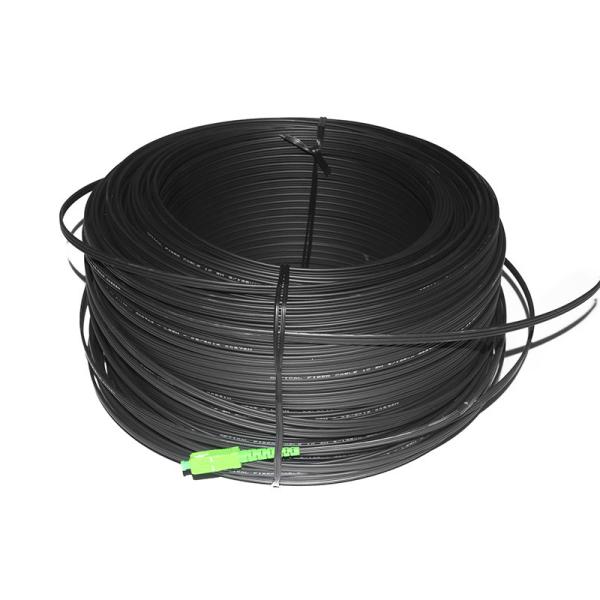

SC APC UPC FTTH Fiber Optic Drop Cable G657A G652D Simplex Duplex

Name: SC APC UPC FTTH Fiber Optic Drop Cable G657A G652D Simplex Duplex
Brand: ODM/OEM
Price: 0.35 USD

China SC APC UPC FTTH Fiber Optic Drop Cable G657A G652D Simplex Duplex factory

Model Number : patch cable

Place of Origin : China

Brand Name : ODM/OEM

Certification : ROHS; ISO

Packaging Details : Individual box or according to customer's request

Supply Ability : 20000 Piece/Pieces per Day

MOQ : 5 pieces

Price : $0.35 - $2.50/pieces

Payment Terms : T/T, Western Union

Type : Fiber Optic Cable

Use : FTTH

Fiber type : Singlemode

Inserion Loss : <0.25db

Return Loss : ≥50dB(PC/UPC) ≥60dB(APC)

Fiber Brand : Corning, YOFC, OFS ...

Connector type : SC/APC,SC/UPC

Jacket color : Black or others

Jacket material : LSZH,PVC,OFRN,ORNP

Cable diameter : 2.0mm,3.0mm

Length : Customized

Single-Mode Fiber : G657A1

No. of Fiber : 1.

Contact Now

Product Description

G657A G652D SC APC UPC simplex duplex FTTH fiber optic flat drop patch cable

SC APC UPC FTTH Fiber Optic Drop Cable G657A G652D Simplex Duplex

APPLICATION

Use in the fiber to the home projects Suitable for being used in homes and offices Ideal to use for direct installation into the houses

FEATURES

1.Two parallel fiber reinforced plastic as the strength member ensures good performance of crush resistance to protect the fiber. 2.Environmental protection- Low smoke, zero halogen and flame retardant sheath. 3. Single steel wire as additional strength member ensuring good performance of tensile strength and self-supporting. 4.Simple structure, light weight.

PRODUCT PARAMETERS

Type

SM-UPC

SM-APC

MM-UPC

Typical

MAX

Typical

MAX

Typical

MAX

Insertion loss

≥45dB

≤0.35dB

≤0.15

≤0.35dB

≤0.05

≤0.30dB

Return loss

≥45dB

≥55dB

≥30dB

Durability

500 mating cycles

Working temperature

-40 to + 85℃

Main Products

Fiber Optic Cable

Patch Cord&Pigtail

MPO/MTP

FTTX Cable Assembly

PLC Splitter

Fast Connector

Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Packing & Delivery

Sample

Within 1-2 working days

Wholesale orders

3-7 working days according various quantities

FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers

2. What's our main products?
Answer: We dedicate to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

3. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

4. What certificate we have?
Answer: ISO 9001: 2008, RoSH, CE, High and New Tech Enterprise Certficate.
